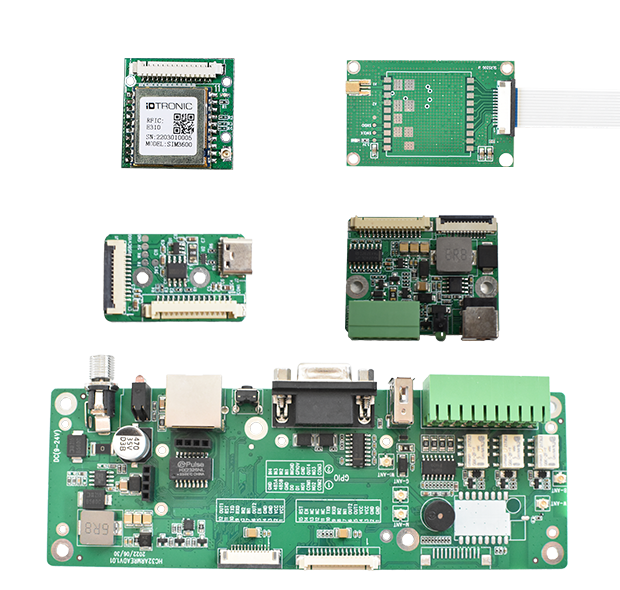

Embedded UHF Interface Boards
B50 / B60 / B100 / B200 / B900

Highlights

Interfaces de communication : USB (2.0, Type C), RS232 et Ethernet
Ports GPIO
Bouton de réinitialisation IP
Indicateurs LED pour l’alimentation / le statut
Connecteurs FPC 12 broches ou connecteurs à ruban 15 broches

Spécifications

General Specifications B100
Description Embedded UHF interface Board B100
Dimensions 35 × 22 × 4.6 mm
Weight 3.6 g
General Specifications B200
Description Embedded UHF interface Board B200
Dimensions 35 × 45 × 11.6 mm
Weight 14 g
General Specifications B900
Description Embedded UHF interface Board B900
Dimensions 160 × 64 × 19.2 mm
Weight 79.8 g
Electrical Specifications B100
Power Supply USB Type-C 5V
Power Consumption 0.5W during operation of the single board
Communication Interface USB (9600 – 921600 bps)
Connectors 12-Pin FPC and 15-Pin Ribbon
GPIO
Indicator LEDs
Electrical Specifications B200
Power Supply 9-24V with standard adapter (12V/3A)
Power Consumption 0.5W during operation of the single board
Communication Interface RS232 (9600 – 460800 bps)
Connectors 12-Pin FPC and 15-Pin Ribbon
GPIO 1 input, 1 strong driver output (each pull-up current can reach 250mA)
Indicator LEDs Power indicator (green)
Electrical Specifications B900
Power Supply 9-24V with standard adapter (12V/3A) POE power supply (compatible with 802.3af or 802.3at standard)
Power Consumption POE power supply capacity: Using a 100-meter ultra-five-category network cable, different types of POE switches have deviations.
Communication Interface 10M/100M adaptive Ethernet, RS232 (9600 – 230400 bps), USB (9600 – 921600 bps)
Connectors 12-Pin FPC and 15-Pin Ribbon
GPIO 4 input, 4 strong driver output (each pull-up current can reach 250mA)
Indicator LEDs Power indicator (green), Status indicator (red)
SDK Information
Supported OS Windows, Linux, Android
Supported Languages C, C#/.NET, Java
Demo Software Windows

Description

Les iDTRONIC EMBEDDED UHF INTERFACE BOARDS sont conçues pour faciliter les tests de modules RF et l’assemblage de machines complètes. Cette série de produits adopte une conception de qualité industrielle. Une variété de modules tels que M500, M600, M620, M630, M650, M670 et M690 peuvent être connectés directement à la carte.

Des interfaces de communication standard telles que USB Type-C, RS232 et TCP/IP sont fournies. Ces cartes sont pratiques pour évaluer les performances des modules RF et peuvent être combinées avec un boîtier pour créer un lecteur fixe avec une structure compacte, une installation pratique et des performances stables, adaptées à diverses applications industrielles.

Les cartes d’interface facilitent également les tests des opérations GPIO, du redémarrage, du contrôle de mise sous tension, etc. La B100 est alimentée par USB, tandis que les modèles B200 et B900 sont alimentés par une tension de 9 à 24 V. (POE en option uniquement pour la B900 (802.3at/af)). Les clients de

iDTRONIC peuvent rapidement évaluer les performances des modules RF grâce à ces cartes et développer leurs propres produits sur la base d’informations open-source.



Domaines d’application

  • Tests de modules RFID UHF
  • Développement électronique
  • Production / Fabrication
